0202 Inch Fine Tanged Helicoil Wire Threaded Insert

过去 2 小时内售出 17 件产品
销售火爆！已有超过 9 人将商品加入购物车
现在有 23 人正在浏览此页面
  • Check Mark Estimated Delivery : Up to 4 business days
  • Check Mark Free Shipping & Returns : On all orders over $200
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
  • Apple Pay
Guaranteed Safe And Secure Checkout

Specifications

Model
0-80-1D Stainless Steel 304
Thread Size
0 (.060)-80
Size Designation
00
Nominal Length1
1
Length of Insert (in Diameter)
0.060
Free Outer Diameter Min.
---
Free Outer Diameter Max.
---
Number of Free Coils2
1
Nominal Length (Diameter)
3
Thread Type
UNF
Material
Stainless Steel 304
KATO CoilThread No.
---
MA/MS No.
---
Heli-Coil No.
---

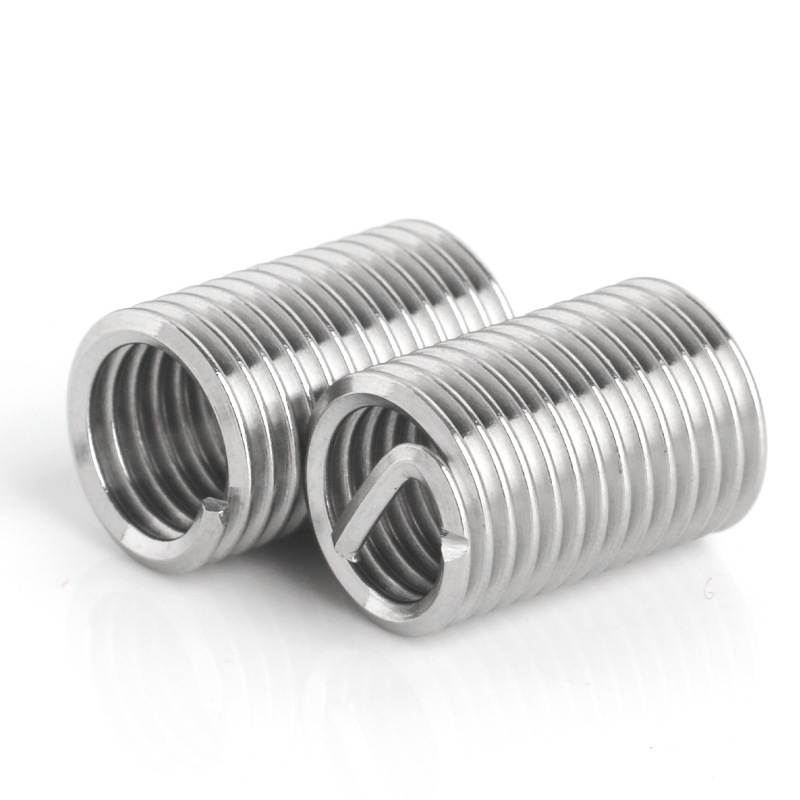

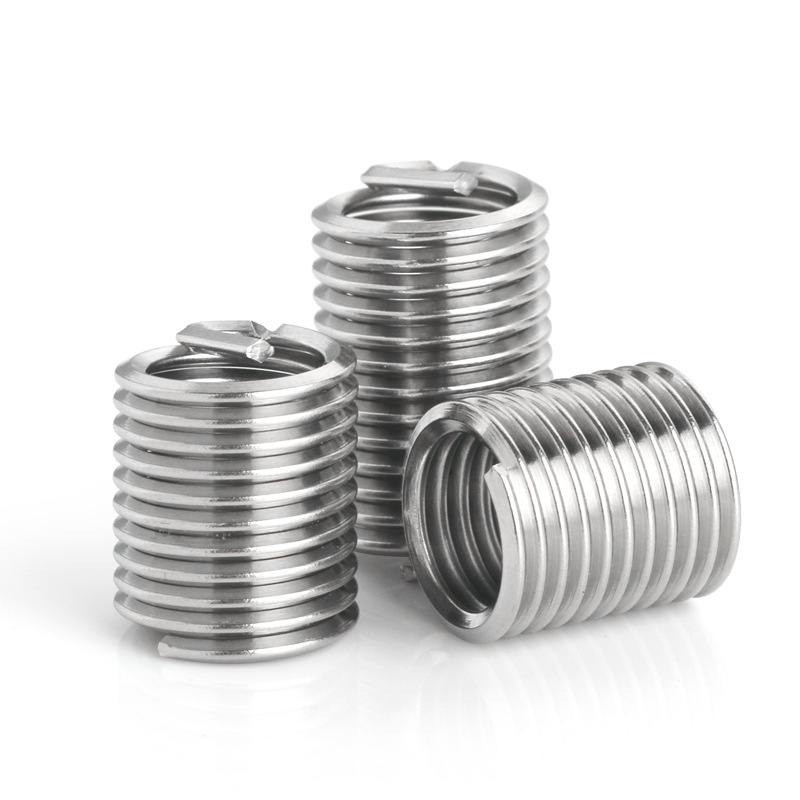

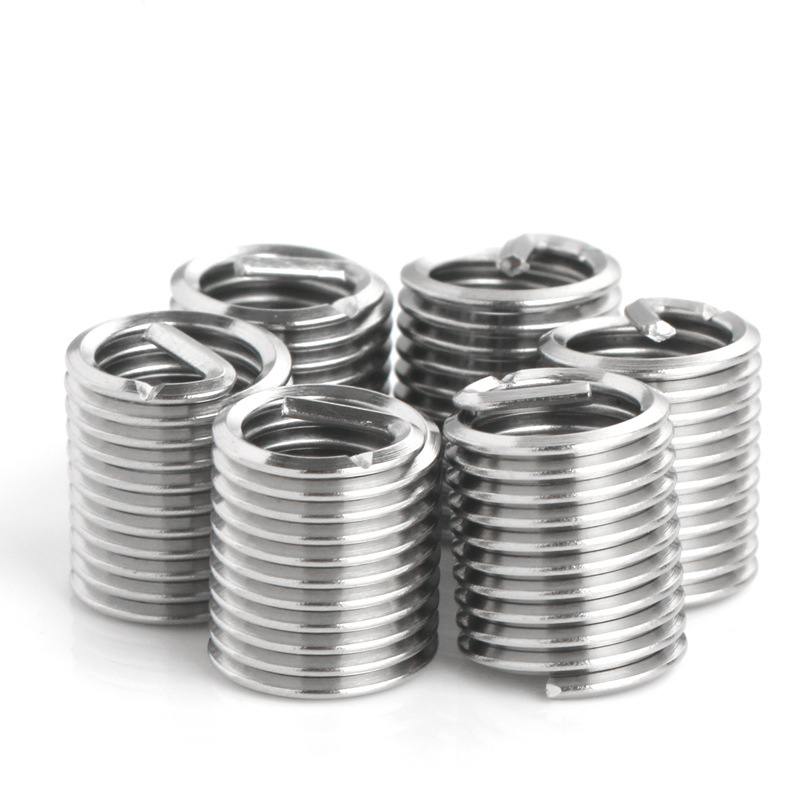

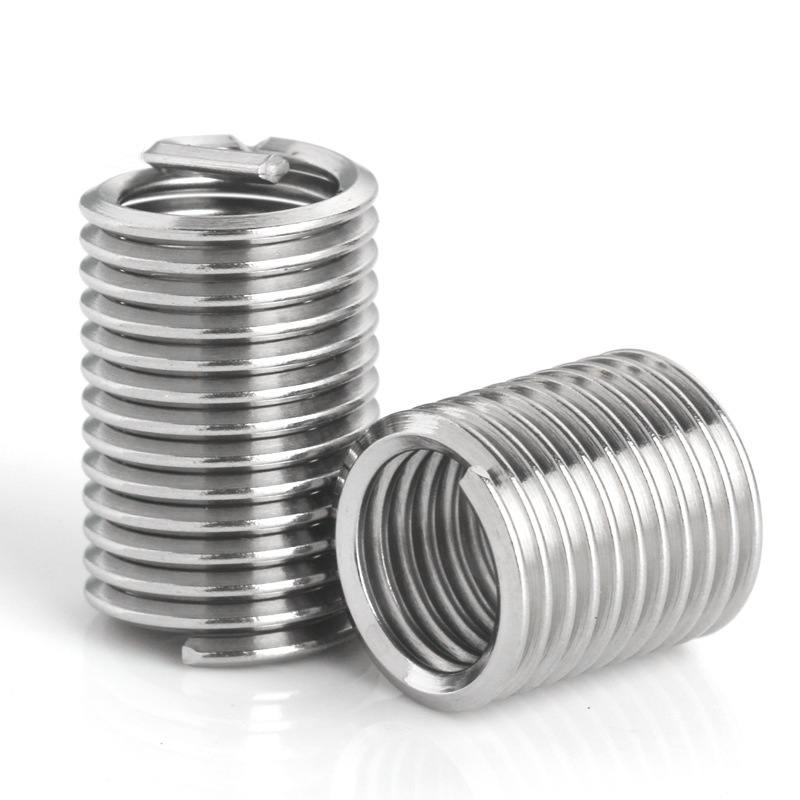

TK Wire Threaded inserts – also known as screw or helical threaded inserts – quickly repair or reinforce tapped holes in soft metals. Made from 18-8 stainless steel wire, inserts provide strong internal threads that are corrosion resistant and withstand temperatures to 800°F.

The wire is formed into a diamond pattern and then wound into a spring. Before being installed, the insert diameter is larger than the tapped hole. The insert diameter is reduced during installation, allowing the insert to thread into the hole. Once properly installed, the radial pressure of the released insert holds the insert firmly in place.

TK wire threaded inserts are available from stock in either free running or screw locking types, which come in five standard lengths and in various pitches and thread types, including metric, UNF, UNC, and British Standard.

Materials and Coatings

304 Stainless Steel (standard)

Phosphor Bronze

Inconel X-750

Nitronic 60®

Platings and Coatings

Dry Film Lubricant

Cadmium

Silver

Electroless Nickel

Color Identifier

Xylan

We offer a range of materials, finishes, and coatings of inserts, and can also manufacture inserts in special lengths and pitches upon customer request.

Helical Wire inserts are precision manufactured to provide permanent, wear-resistant screw threads that exceed the strength of most parent materials. Inserts are available in non-locking (free running) and self-locking varieties. Special sizes are available to meet your exact specifications and insert needs.

•Comply with AS7245 and NASM-8846 for the Standard series and MA1565 for the metric series.

•Meet or exceed the Military and Aerospace standards

•ISO 9001:2015 certified

Features

Quickly repair damaged threads in soft metal

Protect tapped holes from stripping and wear

Made from corrosion-resistant 18-8 stainless steel

Applications:

Soft metals: aluminum, cast iron, magnesium, etc.

Wire Thread Insert Brand Options

•KATO® Tangless® (trademark owned by Advanex Inc.)

•Helicoil® (trademark owned by Stanley Engineered Fastening)

•Recoil® (trademark owned by Arconic Fastening Systems)

And other Brand alternative solutions will be provided upon request.

Model

0-80-1.5D Stainless Steel 304, 0-80-1D Stainless Steel 304, 0-80-2.5D Stainless Steel 304, 0-80-2D Stainless Steel 304, 0-80-3D Stainless Steel 304, 1-1/2-12-1.5D Stainless Steel 304, 1-1/2-12-1D Stainless Steel 304, 1-1/2-12-2.5D Stainless Steel 304, 1-1/2-12-2D Stainless Steel 304, 1-1/2-12-3D Stainless Steel 304, 1-1/4-12-1.5D Stainless Steel 304, 1-1/4-12-1D Stainless Steel 304, 1-1/4-12-2.5D Stainless Steel 304, 1-1/4-12-2D Stainless Steel 304, 1-1/4-12-3D Stainless Steel 304, 1-1/8-12-1.5D Stainless Steel 304, 1-1/8-12-1D Stainless Steel 304, 1-1/8-12-2.5D Stainless Steel 304, 1-1/8-12-2D Stainless Steel 304, 1-1/8-12-3D Stainless Steel 304, 1-12-1.5D Stainless Steel 304, 1-12-1D Stainless Steel 304, 1-12-2.5D Stainless Steel 304, 1-12-2D Stainless Steel 304, 1-12-3D Stainless Steel 304, 1-3/8-12-1.5D Stainless Steel 304, 1-3/8-12-1D Stainless Steel 304, 1-3/8-12-2.5D Stainless Steel 304, 1-3/8-12-2D Stainless Steel 304, 1-3/8-12-3D Stainless Steel 304, 1/2-20-1.5D Stainless Steel 304, 1/2-20-1D Stainless Steel 304, 1/2-20-2.5D Stainless Steel 304, 1/2-20-2D Stainless Steel 304, 1/2-20-3D Stainless Steel 304, 1/4-28-1.5D Stainless Steel 304, 1/4-28-1D Stainless Steel 304, 1/4-28-2.5D Stainless Steel 304, 1/4-28-2D Stainless Steel 304, 1/4-28-3D Stainless Steel 304, 10-32-1.5D Stainless Steel 304, 10-32-1D Stainless Steel 304, 10-32-2.5D Stainless Steel 304, 10-32-2D Stainless Steel 304, 10-32-3D Stainless Steel 304, 3-56-1.5D Stainless Steel 304, 3-56-1D Stainless Steel 304, 3-56-2.5D Stainless Steel 304, 3-56-2D Stainless Steel 304, 3-56-3D Stainless Steel 304, 3/4-16-1.5D Stainless Steel 304, 3/4-16-1D Stainless Steel 304, 3/4-16-2.5D Stainless Steel 304, 3/4-16-2D Stainless Steel 304, 3/4-16-3D Stainless Steel 304, 3/8-24-1.5D Stainless Steel 304, 3/8-24-1D Stainless Steel 304, 3/8-24-2.5D Stainless Steel 304, 3/8-24-2D Stainless Steel 304, 3/8-24-3D Stainless Steel 304, 4-48-1.5D Stainless Steel 304, 4-48-1D Stainless Steel 304, 4-48-2.5D Stainless Steel 304, 4-48-2D Stainless Steel 304, 4-48-3D Stainless Steel 304, 5/16-24-1.5D Stainless Steel 304, 5/16-24-1D Stainless Steel 304, 5/16-24-2.5D Stainless Steel 304, 5/16-24-2D Stainless Steel 304, 5/16-24-3D Stainless Steel 304, 5/8-18-1.5D Stainless Steel 304, 5/8-18-1D Stainless Steel 304, 5/8-18-2.5D Stainless Steel 304, 5/8-18-2D Stainless Steel 304, 5/8-18-3D Stainless Steel 304, 6-40-1.5D Stainless Steel 304, 6-40-1D Stainless Steel 304, 6-40-2.5D Stainless Steel 304, 6-40-2D Stainless Steel 304, 6-40-3D Stainless Steel 304, 7/16-20-1.5D Stainless Steel 304, 7/16-20-1D Stainless Steel 304, 7/16-20-2.5D Stainless Steel 304, 7/16-20-2D Stainless Steel 304, 7/16-20-3D Stainless Steel 304, 7/8-14-1.5D Stainless Steel 304, 7/8-14-1D Stainless Steel 304, 7/8-14-2.5D Stainless Steel 304, 7/8-14-2D Stainless Steel 304, 7/8-14-3D Stainless Steel 304, 8-36-1.5D Stainless Steel 304, 8-36-1D Stainless Steel 304, 8-36-2.5D Stainless Steel 304, 8-36-2D Stainless Steel 304, 8-36-3D Stainless Steel 304, 9/16-18-1.5D Stainless Steel 304, 9/16-18-1D Stainless Steel 304, 9/16-18-2.5D Stainless Steel 304, 9/16-18-2D Stainless Steel 304, 9/16-18-3D Stainless Steel 304
Thread Size

0 (.060)-80, 1 (1.0000)-12, 1-1/2 (1.5000)-12, 1-1/4 (1.2500)-12, 1-1/8 (1.1250)-12, 1-3/8 (1.3750)-12, 1/2 (.5000)-20, 1/4 (.250)-28, 10 (.190)-32, 3 (.099)-56, 3/4 (.750)-16, 3/8 (.3750)-24, 4 (.112)-48, 5/16 (.3125)-24, 5/8 (.6250)-18, 6 (.138)-40, 7/16 (.4375)-20, 7/8 (.8750)-14, 8 (.164)-36, 9/16 (.5625)-18
Size Designation

00, 03, 04, 06, 10, 12, 14, 16, 18, 2, 20, 22, 24, 3, 4, 5, 6, 7, 8, 9
Nominal Length1

1, 1.5, 2, 2.5, 3
Length of Insert (in Diameter)

0.060, 0.090, 0.099, 0.112, 0.120, 0.138, 0.148, 0.150, 0.164, 0.168, 0.180, 0.190, 0.198, 0.207, 0.224, 0.246, 0.248, 0.250, 0.276, 0.280, 0.285, 0.297, 0.312, 0.328, 0.336, 0.345, 0.375, 0.380, 0.410, 0.414, 0.438, 0.469, 0.475, 0.492, 0.500, 0.562, 0.570, 0.625, 0.656, 0.750, 0.781, 0.844, 0.875, 0.938, 1.000, 1.094, 1.125, 1.250, 1.312, 1.375, 1.406, 1.500, 1.562, 1.688, 1.750, 1.875, 2.000, 2.062, 2.188, 2.250, 2.500, 2.625, 2.750, 2.812, 3.000, 3.125, 3.375, 3.438, 3.750, 4.125, 4.500
Free Outer Diameter Min.

—, 0.131, 0.147, 0.173, 0.204, 0.236, 0.306, 0.380, 0.448, 0.524, 0.592, 0.666, 0.733, 0.876, 1.021, 1.169, 1.304, 1.439, 1.575, 1.710
Free Outer Diameter Max.

—, 0.146, 0.162, 0.193, 0.224, 0.256, 0.326, 0.400, 0.468, 0.549, 0.617, 0.691, 0.758, 0.901, 1.051, 1.199, 1.334, 1.469, 1.610, 1.745
Number of Free Coils2

1, 1.5, 2, 2.5, 3
Nominal Length (Diameter)

—, 10-1/4, 10-3/4, 10-3/8, 10-5/8, 11, 11-1/8, 11-3/8, 11-5/8, 12-1/2, 12-1/4, 12-3/8, 12-5/8, 13-1/4, 13-3/4, 14-1/2, 14-1/4, 14-1/8, 14-5/8, 14-7/8, 15, 15-1/2, 15-1/4, 15-1/8, 15-5/8, 16-7/8, 17-1/4, 17-1/8, 17-5/8, 18-1/2, 19, 19-1/4, 19-1/8, 19-3/8, 20-1/2, 20-5/8, 21-1/8, 21-3/4, 21-3/8, 22-1/2, 23-1/2, 23-1/8, 23-3/8, 24-1/4, 25-7/8, 26, 26-1/4, 26-5/8, 28-7/8, 29-1/2, 29-3/8, 3, 3-1/2, 3-3/8, 3-7/8, 31-1/2, 31-5/8, 32-1/4, 33, 35-3/4, 36-1/2, 39-7/8, 4-1/8, 44, 48-1/8, 5, 5-1/2, 5-5/8, 6, 6-1/2, 6-5/8, 6-7/8, 7-3/8, 7-7/8, 8, 8-1/4, 8-3/8, 8-7/8, 9, 9-1/2, 9-1/8, 9-3/4, 9-5/8, 9-7/8
Thread Type

UNF
Material

Stainless Steel 304
KATO CoilThread No.

—, TNF-03C-0099, TNF-03C-0148, TNF-03C-0198, TNF-03C-0248, TNF-03C-0297, TNF-04C-0112, TNF-04C-0168, TNF-04C-0224, TNF-04C-0280, TNF-04C-0336, TNF-06C-0138, TNF-06C-0207, TNF-06C-0276, TNF-06C-0345, TNF-06C-0414, TNF-10C-0625, TNF-10C-0938, TNF-10C-1250, TNF-10C-1562, TNF-10C-1875, TNF-12C-0750, TNF-12C-1125, TNF-12C-1500, TNF-12C-1875, TNF-12C-2250, TNF-14C-0875, TNF-14C-1312, TNF-14C-1750, TNF-14C-2188, TNF-14C-2625, TNF-161C-1000, TNF-161C-1500, TNF-161C-2000, TNF-161C-2500, TNF-161C-3000, TNF-18C-1125, TNF-18C-1688, TNF-18C-2250, TNF-18C-2812, TNF-18C-3375, TNF-20C-1250, TNF-20C-1875, TNF-20C-2500, TNF-20C-3125, TNF-20C-3750, TNF-22C-1375, TNF-22C-2062, TNF-22C-2750, TNF-22C-3438, TNF-22C-4125, TNF-24C-1500, TNF-24C-2250, TNF-24C-3000, TNF-24C-3750, TNF-24C-4500, TNF-2C-0164, TNF-2C-0246, TNF-2C-0328, TNF-2C-0410, TNF-2C-0492, TNF-3C-0190, TNF-3C-0285, TNF-3C-0380, TNF-3C-0475, TNF-3C-0570, TNF-4C-0250, TNF-4C-0375, TNF-4C-0500, TNF-4C-0625, TNF-4C-0750, TNF-5C-0312, TNF-5C-0469, TNF-5C-0625, TNF-5C-0781, TNF-5C-0938, TNF-6C-0375, TNF-6C-0562, TNF-6C-0750, TNF-6C-0938, TNF-6C-1125, TNF-7C-0438, TNF-7C-0656, TNF-7C-0875, TNF-7C-1094, TNF-7C-1312, TNF-8C-0500, TNF-8C-0750, TNF-8C-1000, TNF-8C-1250, TNF-8C-1500, TNF-9C-0562, TNF-9C-0844, TNF-9C-1125, TNF-9C-1406, TNF-9C-1688
MA/MS No.

—, MS124651, MS124653, MS124654, MS124655, MS124656, MS124657, MS124658, MS124659, MS124660, MS124661, MS124662, MS124663, MS124664, MS124666, MS124667, MS124668, MS124669, MS124670, MS124671, MS124691, MS124693, MS124694, MS124695, MS124696, MS124697, MS124698, MS124699, MS124700, MS124701, MS124702, MS124703, MS124704, MS124706, MS124707, MS124708, MS124709, MS124710, MS124711, MS124731, MS124733, MS124734, MS124735, MS124736, MS124737, MS124738, MS124739, MS124740, MS124741, MS124742, MS124743, MS124744, MS124746, MS124747, MS124748, MS124749, MS124750, MS124751, MS124771, MS124773, MS124774, MS124775, MS124776, MS124777, MS124778, MS124779, MS124780, MS124781, MS124782, MS124783, MS124784, MS124786, MS124787, MS124788, MS124789, MS124790, MS124791, MS124811, MS124813, MS124814, MS124815, MS124816, MS124817, MS124818, MS124819, MS124820, MS124821, MS124822, MS124823, MS124824, MS124826, MS124827, MS124828, MS124829, MS124830, MS124831
Heli-Coil No.

—, 1191-03CN099, 1191-03CN148, 1191-03CN198, 1191-03CN248, 1191-03CN297, 1191-04CN112, 1191-04CN168, 1191-04CN224, 1191-04CN280, 1191-04CN336, 1191-06CN138, 1191-06CN207, 1191-06CN276, 1191-06CN345, 1191-06CN414, 1191-10CN1250, 1191-10CN1562, 1191-10CN1875, 1191-10CN625, 1191-10CN938, 1191-12CN1125, 1191-12CN1500, 1191-12CN1875, 1191-12CN2250, 1191-12CN750, 1191-14CN1312, 1191-14CN1750, 1191-14CN2188, 1191-14CN2625, 1191-14CN875, 1191-161CN1000, 1191-161CN1500, 1191-161CN2000, 1191-161CN2500, 1191-161CN3000, 1191-18CN1125, 1191-18CN1688, 1191-18CN2250, 1191-18CN2812, 1191-18CN3375, 1191-20CN1250, 1191-20CN1875, 1191-20CN2500, 1191-20CN3125, 1191-20CN3750, 1191-22CN1375, 1191-22CN2062, 1191-22CN2750, 1191-22CN3438, 1191-22CN4125, 1191-24CN1500, 1191-24CN2250, 1191-24CN3000, 1191-24CN3750, 1191-24CN4500, 1191-2CN164, 1191-2CN246, 1191-2CN328, 1191-2CN410, 1191-2CN492, 1191-3CN190, 1191-3CN285, 1191-3CN380, 1191-3CN475, 1191-3CN570, 1191-4CN250, 1191-4CN375, 1191-4CN500, 1191-4CN625, 1191-4CN750, 1191-5CN312, 1191-5CN469, 1191-5CN625, 1191-5CN781, 1191-5CN938, 1191-6CN1125, 1191-6CN375, 1191-6CN562, 1191-6CN750, 1191-6CN938, 1191-7CN1094, 1191-7CN1312, 1191-7CN438, 1191-7CN656, 1191-7CN875, 1191-8CN1000, 1191-8CN1250, 1191-8CN1500, 1191-8CN500, 1191-8CN750, 1191-9CN1125, 1191-9CN1406, 1191-9CN1688, 1191-9CN562, 1191-9CN844
