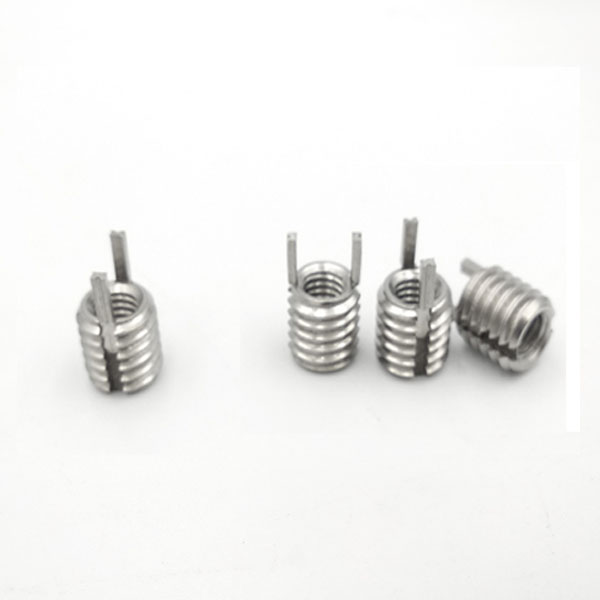

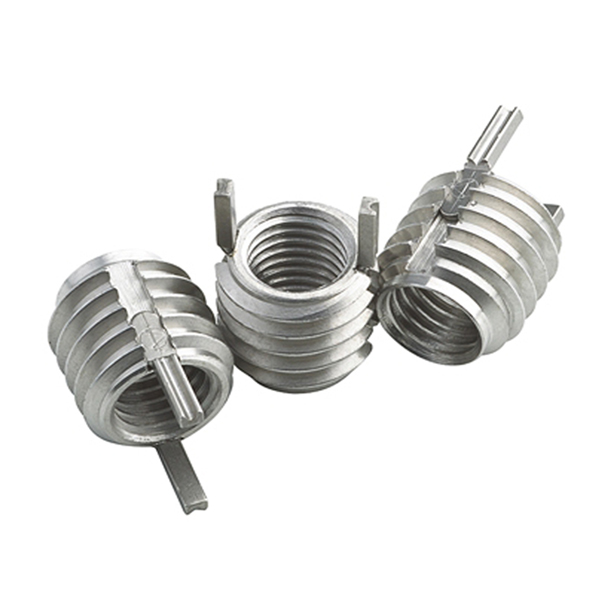

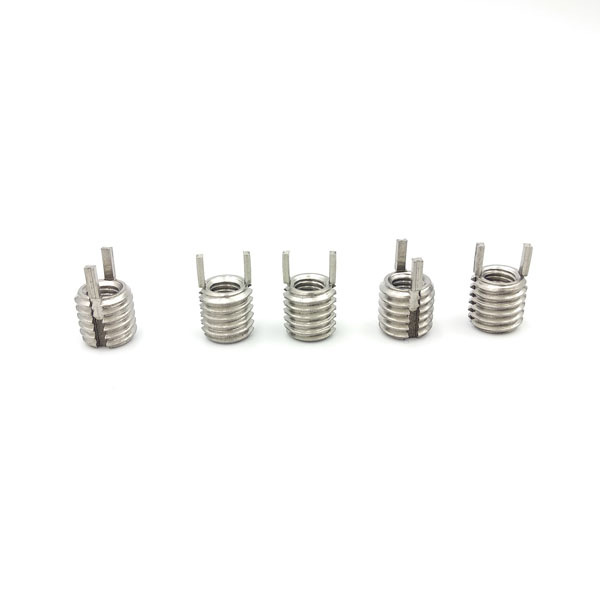

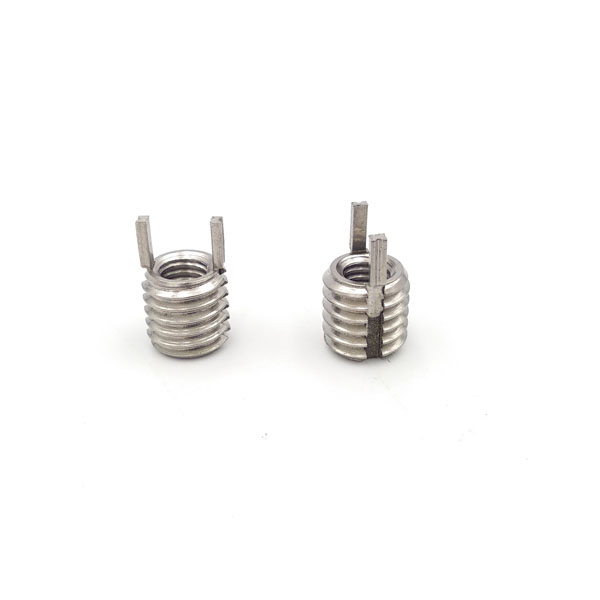

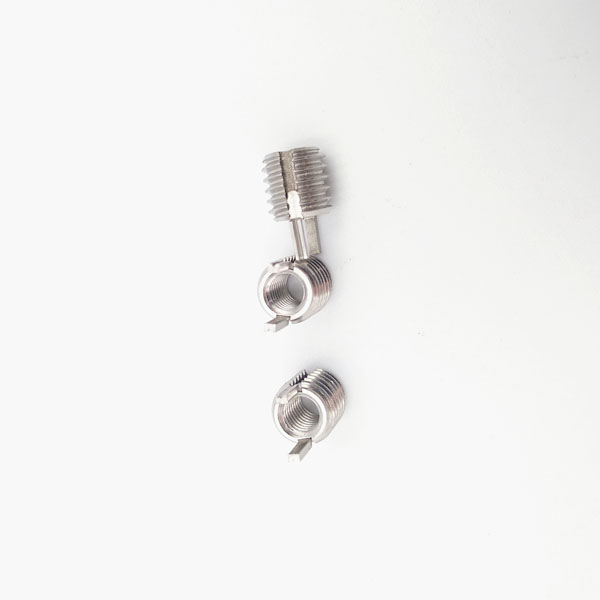

Keensert-Metric-Minature Insert
- Estimated Delivery : Up to 4 business days
- Free Shipping & Returns : On all orders over $200
Specifications
- Model
- 2 X 0.40
- Non Locking Part No. (TypeS)
- KNCM 2 X 0.40
- Internal Thread Size"A"
- M2X0.40
- External Thread Size "B"
- M 4 X 0.70
- Shear Engag.
- 16.5
- C
- 3
- Kees No.
- 2
- Insert Material
- SUS 303
- PIN Material
- SUS 302
- Tap Drill Size +.003 -.001
- 3.40
- C'Sink Dia. +.010 -.000
- 4.0999999999999996
- Thread Tap Size Unf-2B
- M4X0.7
- Thread Tap Depth Min.
- 4.00
- Installation Tool Part No.
- TKNCM 2 X 0.40
- Removal Drill Size
- 2.80
- Depth
- 2.00
Example Details.
Non Locking Part No. (TypeS)
KNCM 2 X 0.40
Internal Thread Size"A"
M2X0.40
External Thread Size "B"
M 4 X 0.70
Shear Engag.
16.50
C
3.00
Kees No.
2
Material
303 Stainless Steel
Tap Drill Size +.003 -.001
3.40
C'Sink Dia. +.010 -.000
4.10
Thread Tap Size “F” Unf-2B
M4X0.7
Thread Tap Depth “G” Min.
4.00
Installation Tool Part No.
TKNCM 2 X 0.40
Removal Drill Size
2.80
Depth
2.00
The head indication images, as below must shows on each page, its identity each product size meaning.
| Model | 2 5 X 0.40, 2 X 0.40, 3 X 0.40, 4 X 0.40 |
|---|---|
| Non Locking Part No. (TypeS) | KNCM 2 X 0.40, KNCM 2.5 X 0.45, KNCM 3 X 0.50, KNCM 4 X 0.70 |
| Internal Thread Size"A" | M2.5X0.45, M2X0.40, M3X0.50, M4X0.70 |
| External Thread Size "B" | M 4 X 0.70, M 5×0.8, M 6 X 0.75, M4.5 x 0.75 |
| Shear Engag. | 16.5, 26.5, 33.1, 58.4 |
| C | 3, 3.8, 4.25, 5.25 |
| Kees No. | 2 |
| Insert Material | SUS 303 |
| PIN Material | SUS 302 |
| Tap Drill Size +.003 -.001 | 3.40, 3.90, 4.40, 5.50 |
| C'Sink Dia. +.010 -.000 | 4.0999999999999996, 4.5999999999999996, 5.0999999999999996, 6.1 |
| Thread Tap Size Unf-2B | M4.5X0.75, M4X0.7, M5X0.80, M6X0.75 |
| Thread Tap Depth Min. | 4.00, 5.00, 5.50, 6.50 |
| Installation Tool Part No. | TKMCM 4 X 0.70, TKNCM 2 X 0.40, TKNCM 2.5 X 0.45, TKNCM 3 X 0.50 |
| Removal Drill Size | 2.80, 3.00, 3.50, 4.60 |
| Depth | 2.00, 2.25, 2.50 |
