Ensat 309 Series Self Tapping Insert
- Estimated Delivery : Up to 4 business days
- Free Shipping & Returns : On all orders over $200
Specifications
- Model
- M2.5 Brass 309 0025.80
- ENSAT CODE 308 Series.
- 309 0025.80

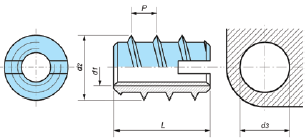

- Inside Thread d1
- M2.5
- External Thread d2
- 5
- External Thread Pitch (P)
- 1.6
- Total Lenghth L mm
- 6
- Thread Type
- Metric
- Meterial
- Brass
- Finish
- Nature
- Appox. Hole Diameter D3 Soft Materials
- 3.5
- Appox. Hole Diameter D3 Hard Material
- 3.6-3.8
- Min.Hole Depth
- 8
TK Fastener provides wide range of stock Ensat self tapping insert, 302,303,305,307,309,and other sizes upon request, materials available on Steel, Stainless Steel A2, A4, Brass. We have kept over 100,000 pcs each size for quick supply in stainless steel and steel.

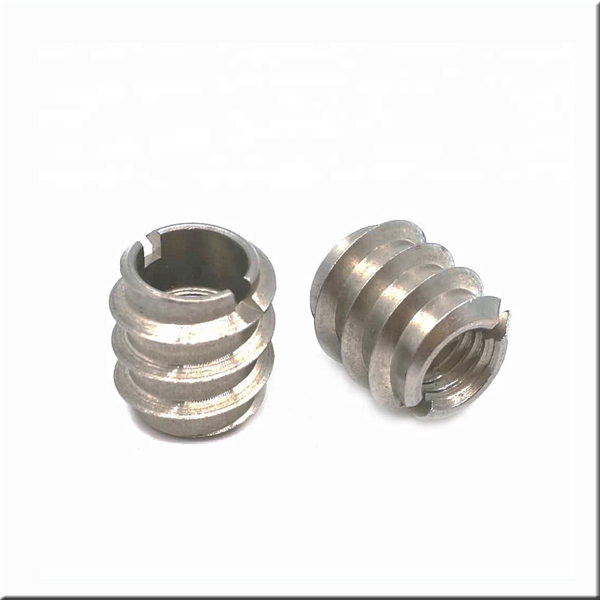

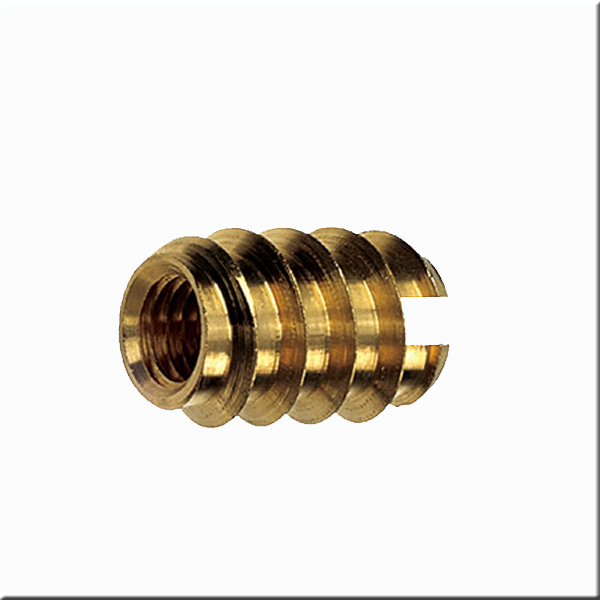

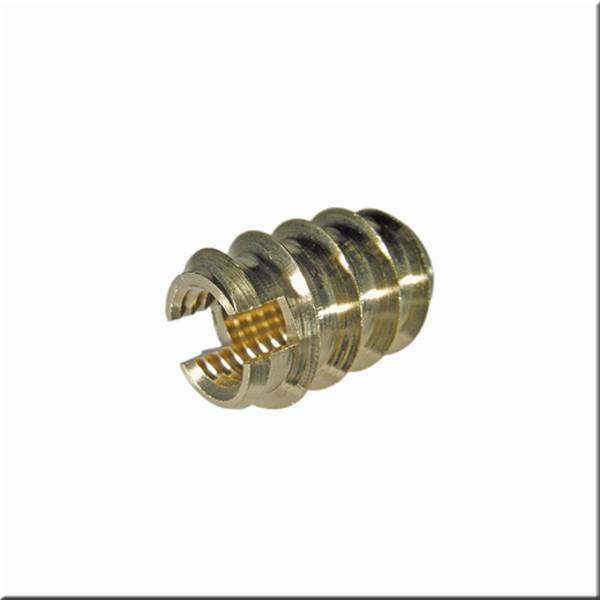

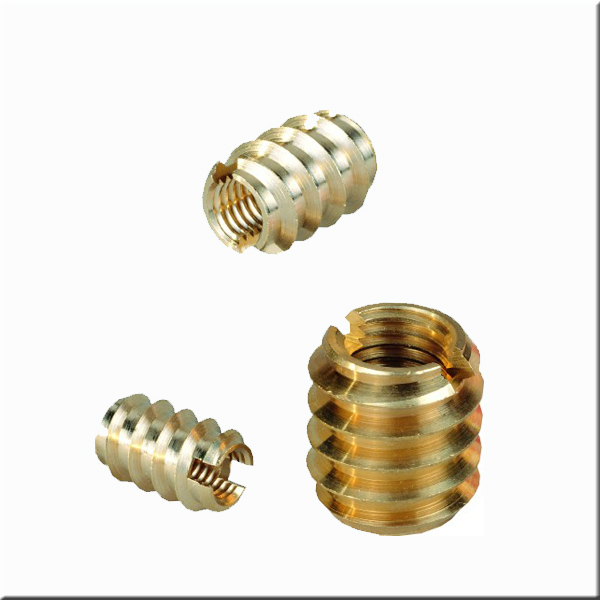

The Ensat® is a self-tapping metal insert, with internal and external thread and slots or holes providing a tapping effect.
The Ensat® bush is installed into materials with low resistance (such as alloys, plastics and castings) requiring threaded seats with high specifications of resistance and wear.
They can also be used for re-tapping worn thread.
The Ensat 302 bush (with tapping grooves) is ideal for use with most applications.
The Ensat® bush may create a slight self-locking effect with some materials.
If this is not required, we recommend the Ensat 307-308 series (with tapping holes), whose shape is ideal for materials that are particularly resistant to cutting.
The Ensat 307 series is short and compact and is particularly suitable for low thicknesses.
The Ensat® bush can be used for all machining and processing of plastics.
The Ensat® bush has a large cutting surface and therefore offers greater resistance to traction. It can be inserted into the finished item, which means higher efficiency for machining centres
and the elimination of positioning errors or material deposited in the thread.
Ensat® is the trade mark owned by Tappex Thread Inserts Ltd.
| Model | M10 Brass 309 0100.80, M12 Brass 309 0120.80, M14 Brass 309 0140.80, M16 Brass 309 0160.80, M2.5 Brass 309 0025.80, M3 Brass 309 0030.80, M3.5 Brass 309 0035.80, M4 Brass 309 0040.80, M5 Brass 309 0050.80, M6 Brass 309 0060.80, M8 Brass 309 0080.80 |
|---|---|
| ENSAT CODE 308 Series. | 309 0025.80, 309 0030.80, 309 0035.80, 309 0040.80, 309 0050.80, 309 0060.80, 309 0080.80, 309 0100.80, 309 0120.80, 309 0140.80, 309 0160.80 |
| Inside Thread d1 | M10, M12, M14, M16, M2.5, M3, M3.5, M4, M5, M6, M8 |
| External Thread d2 | 10, 13, 16, 19, 22, 24, 5, 5.5, 6.5, 7, 9 |
| External Thread Pitch (P) | 1.6, 2.5, 3, 4, 4.0, 5 |
| Total Lenghth L mm | 10, 12, 14, 20, 23, 26, 6, 8 |
| Thread Type | Metric |
| Meterial | Brass |
| Finish | Nature |
| Appox. Hole Diameter D3 Soft Materials | 12.4, 15.4, 18.399999999999999, 20.399999999999999, 3.5, 4.0999999999999996, 4.5999999999999996, 5.0999999999999996, 6.6, 7.6, 9.9 |
| Appox. Hole Diameter D3 Hard Material | 10.1-10.3, 12.6-12.8, 15.6-15.8, 18.6-18.8, 20.6-20.8, 3.6-3.8, 4.2-4.3, 4.7-4.8, 5.2-5.3, 6.7-6.9, 7.7-7.9 |
| Min.Hole Depth | 10, 13, 15, 17, 23, 26, 30, 8, 9 |
