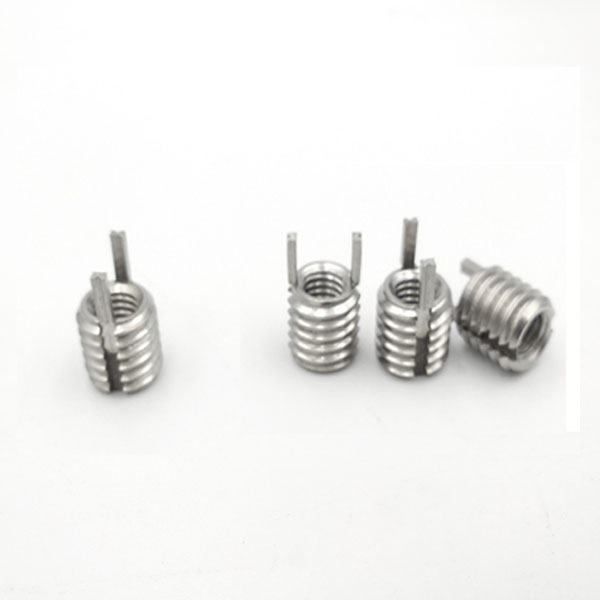

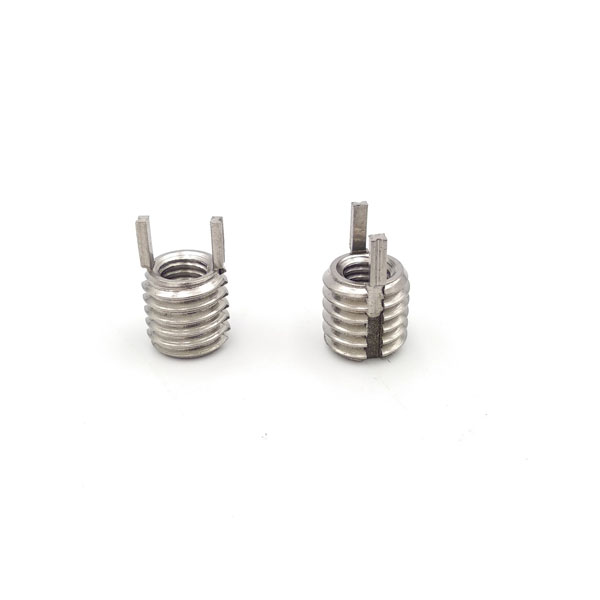

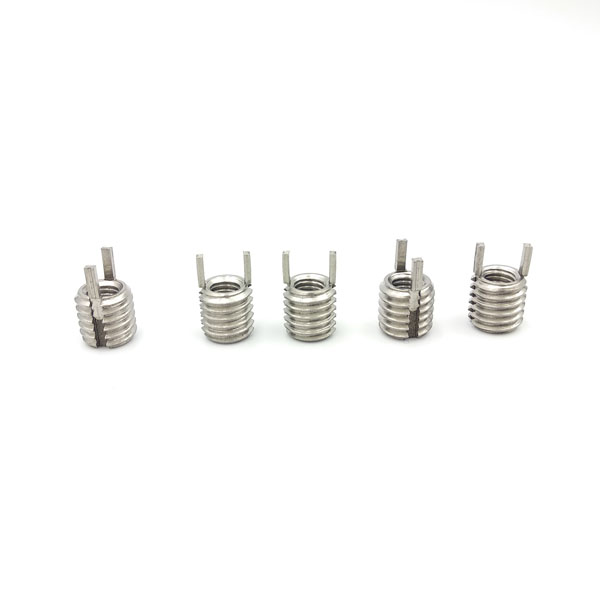

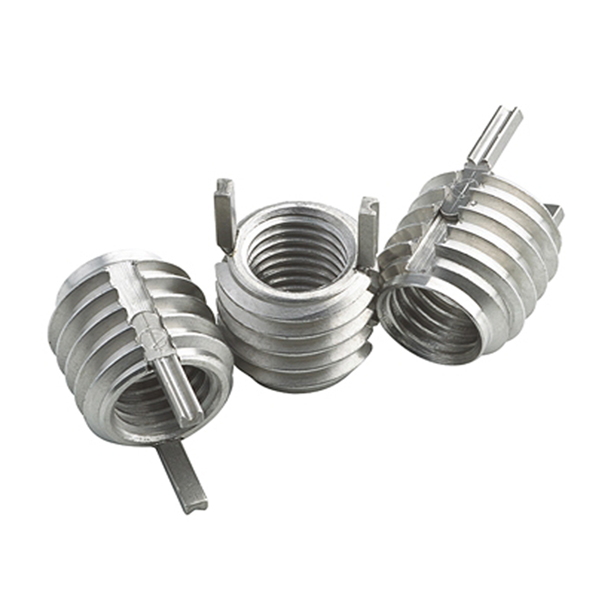

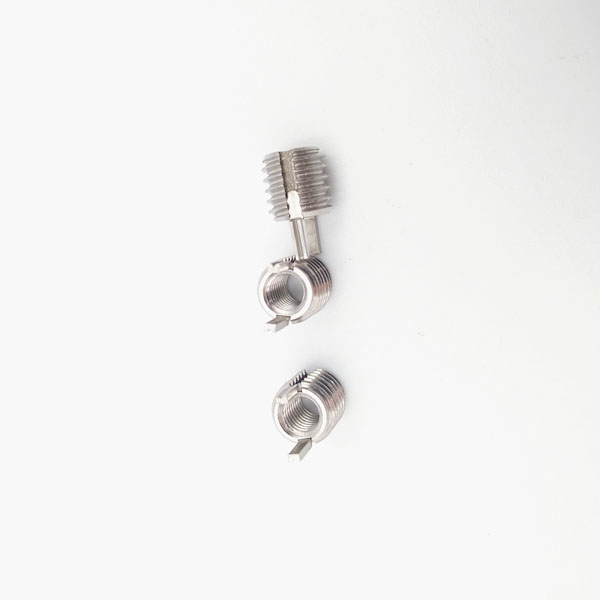

Keensert-Inch-Minature insert
- Estimated Delivery : Up to 4 business days
- Free Shipping & Returns : On all orders over $200
Specifications
- Model
- KNC0080J
- Non Locking Part No. (Type L)
- KNC0080J
- Internal Thread Size "A"
- 0 - 80 UNJF-3B
- External Thread Size "B"
- 6 - 40 UNF-3A
- Shear Engag.
- 1.32E-2
- C
- 0.1
- Kees No.
- 2
- Material
- 303 Stainless Steel
- Tap Drill Size +.003 -.001
- .120*
- C'Sink Dia. +.010 -.000
- .140
- Thread Tap Size Unf-2B
- 6- 40
- Thread Tap Depth Min.
- 0.13
- Installation Tool Part No.
- TKNC 008
- Removal Drill Size
- #38 (.101)
Example Details.
Non Locking Part No. (Type L)
KNC0080J
Internal Thread Size "A"
0 – 80 UNJF-3B
External Thread Size "B"
6 – 40 UNF-3A
Shear Engag.
0.0132
C
0.1
Kees No.
2
Material
303 Stainless Steel
Tap Drill Size +.003 -.001
.120*
C'Sink Dia. +.010 -.000
.140
Thread Tap
6- 40
Thread Tap Depth Min.
0.13
Installation Tool Part No.
TKNC 008
Removal Drill Size
#38 (.101)
Depth
The head indication images, as below must shows on each page, its identity each product size meaning.
| Model | KNC0080J, KNC0632J, KNCA0256J, KNCA0440J, KNCA0832J, KNCC0256J |
|---|---|
| Non Locking Part No. (Type L) | KNC0080J, KNC0632J, KNCA0256J, KNCA0440J, KNCA0832J, KNCC0256J |
| Internal Thread Size "A" | 0 – 80 UNJF-3B, 2-56 UNJC-3B, 4 – 40 UNJC-3B, 6 – 32 UNJC-3B, 8 – 32 UNJC-3B |
| External Thread Size "B" | 1/4 – 28 UNF-2A, 10-32 UNF-2A, 12-28 UNF-2A, 6 – 40 UNF-3A, 8 – 32 UNC-3A |
| Shear Engag. | .0132, .0157, .0302, .0329, .0669, 1.32E-2 |
| C | .10, .12, .17, .22, 0.1 |
| Kees No. | 2 |
| Material | 303 Stainless Steel |
| Tap Drill Size +.003 -.001 | .12, .120*, .134, .161, .187, .228 |
| C'Sink Dia. +.010 -.000 | .140, .166, .194, .220, .255 |
| Thread Tap Size Unf-2B | 1/4 – 28, 10 – 32, 12 -28, 6- 40, 8 – 32 |
| Thread Tap Depth Min. | .130, .140, .160, .210, 0.13 |
| Installation Tool Part No. | TKNC 008, TKNC 02, TKNC 04, TKNC 06, TKNC 08, TKNCCL 02 |
| Removal Drill Size | #21 (.159), #29 (.136), #33 (.113), #38 (.101), #8 (.199) |
| Depth | 1/16, 1/8, 3/32 |
