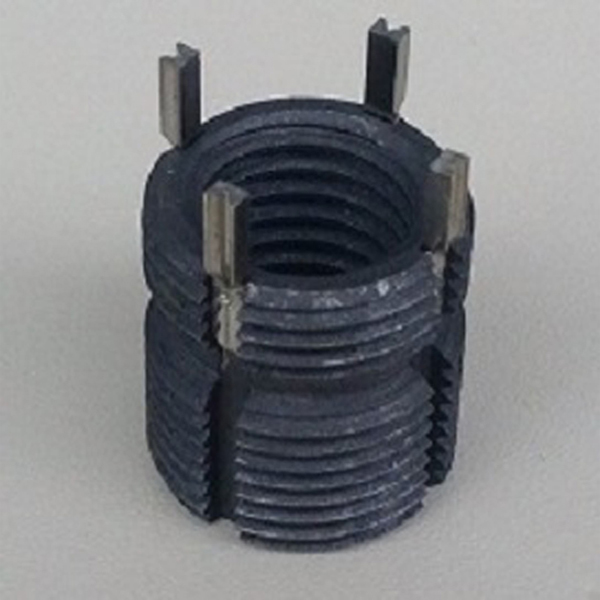

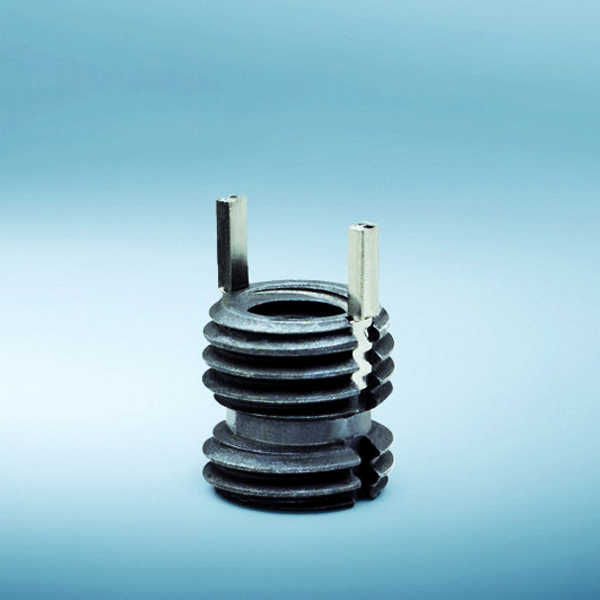

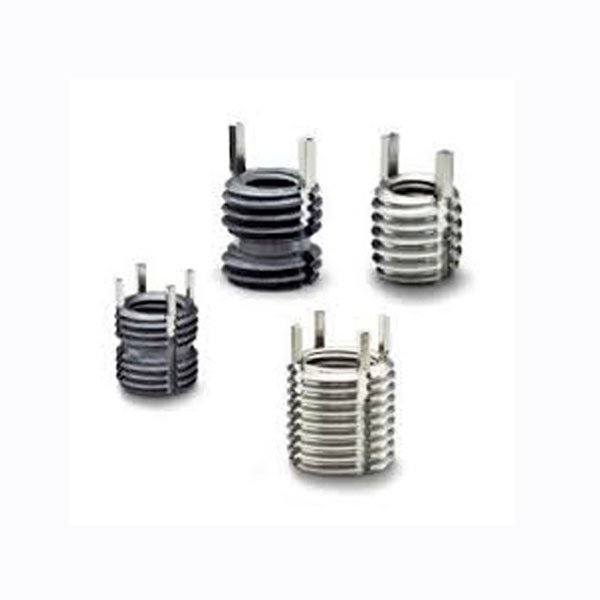

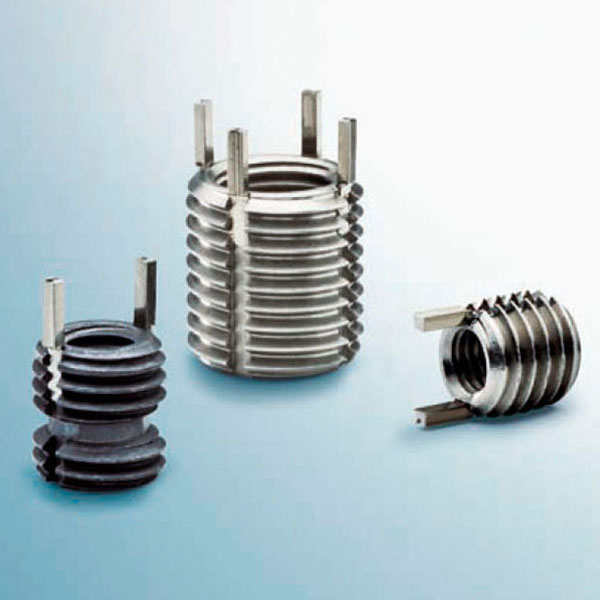

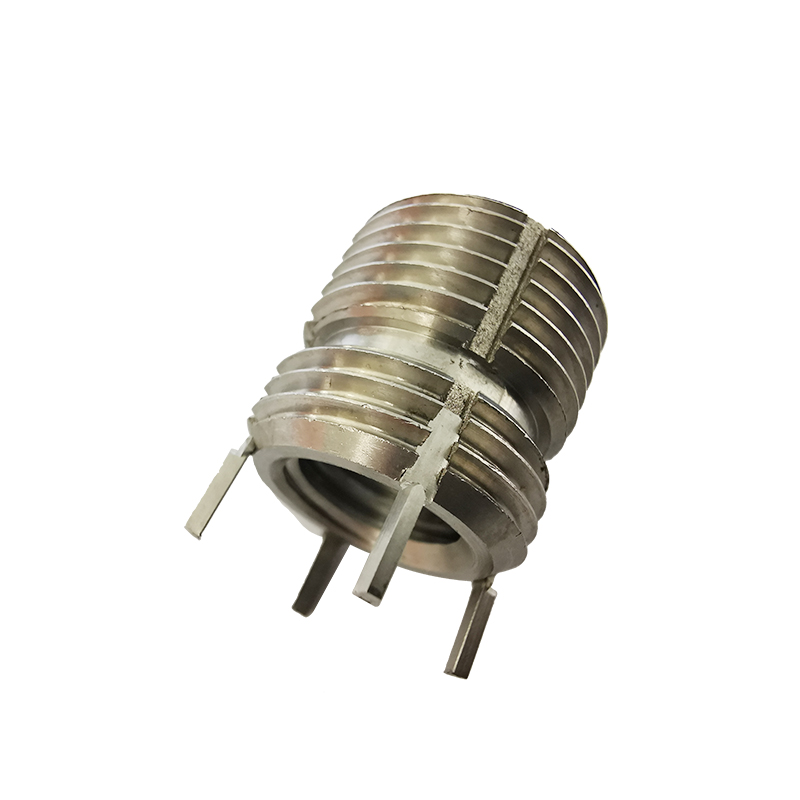

Keensert-Metric-Self locking Lightweight insert
- Estimated Delivery : Up to 4 business days
- Free Shipping & Returns : On all orders over $200
Specifications
- Model
- KNML5x0.80
- Internal Thread Locking Part No.
- KNML 5X0.80
- Internal Thread"A" Class 3B
- M5X0.80
- External Thread Size"B" Class 2A (Mod.)
- M8X1.25
- Shear Engag.
- 83.1
- C mm
- 8.00
- C1 mm
- 7.60
- Kees No.
- 2
- Material
- 303 Stainless Steel
- Installation Tap Drill Dia.
- 6.90
- C'Sink Dia. +.010 -.000
- 8.25
- Installation Thread Tap Size Class 2B
- M8X1.25
- Thread Tap Min. Depth
- 9.50
- Installation Tool Part No.
- TM-5
- Removal Drill Size
- 5.50
- Removal Depth
- 4.00
Example Details.
Internal Thread Locking Part No.
KNML 5X0.80
Internal Thread "A"
M5x0.80
External Thread Size "B"
M8X1.25
Shear Engag.
83.1
C mm
8.00
C1 mm
7.60
Kees No
2
Material
303 Stainless Steel
Installation Tap Drill Dia.
6.90
C'Sink Dia. +.010 -.000
8.25
Installation Thread Tap Size Class 2B
M8x1.25
Thread Tap Min. Depth
9.50
Installation Tool Part No.
TM-5
Removal Drill Size
5.50
Removal Depth
4.00
The head indication images, as below must shows on each page, its identity each product size meaning.
| Model | KNML10x1.80, KNML12x1.80, KNML5x0.80, KNML6x 0.80, KNML8x 1.80, KNML8x1.80 |
|---|---|
| Internal Thread Locking Part No. | KNML 10X1.25, KNML 10X1.50, KNML 12X1.25, KNML 12X1.75, KNML 5X0.50, KNML 5X0.80, KNML 6X 0.75, KNML 8X 1.25, KNML 8X1.00 |
| Internal Thread"A" Class 3B | M10X1.25, M10X1.5, M12X1.25, M12X1.75, M5x0.50, M5X0.80, M6X0.75, M8X1.00, M8X1.25 |
| External Thread Size"B" Class 2A (Mod.) | M10X1.25, M12X1.25, M14X1.50, M16X1.5, M8X1.25 |
| Shear Engag. | 152.7, 242.5, 316.4, 441.4, 83.1 |
| C mm | 10.00, 12.00, 14.00, 16.00, 8.00 |
| C1 mm | 10.00, 10.20, 11.20, 7.00, 7.30, 7.60, 9.00, 9.50 |
| Kees No. | 2, 4 |
| Material | 303 Stainless Steel |
| Installation Tap Drill Dia. | 10.80, 12.80, 14.75, 6.90, 8.80 |
| C'Sink Dia. +.010 -.000 | 10.25, 12.25, 14.25, 16.25, 8.25 |
| Installation Thread Tap Size Class 2B | M10X1.25, M12X1.25, M14X1.5, M16X1.5, M8X1.25 |
| Thread Tap Min. Depth | 11.50, 13.50, 15.50, 17.5, 9.50 |
| Installation Tool Part No. | TM-10, TM-12, TM-5, TM-6, TM-8 |
| Removal Drill Size | 11.50, 13.50, 5.50, 7.50, 9.50 |
| Removal Depth | 4.00, 4.75 |
